The ideal solar-powered tool for maintaining the health of ponds is the Airmax SolarSeries Direct Drive Aeration System. They are ideal for those who have ponds in isolated locations without access to electricity or who wish to use solar energy. These systems are designed to function well across the nation, including in the winter and during periods of low light.
Because it is built to a high standard, this aeration system is long-lasting, low maintenance, and quiet. Systems with direct drive are used, and they have a 12-hour daily runtime. This provides additional oxygen during the hot summer months and prevents fish from dying in the winter. Your SolarSeries pond aerator won't cost you anything once it's installed because it will run entirely on solar energy.
In order for Airmax aeration to function, air from the shore is pumped into unique diffusers located on the pond's bottom. This mixes the water and maintains its health by generating bubbles that lift oxygen-rich water from the bottom.
Manufactured in the USA, Airmax Aeration Systems feature high-performance components, embodying reliability and quality.
 |
|
|---|---|
| Unit | SS20-DD Solar Powered Pond Aerator |
| Max Pond Size | Up to 2 Acres |
| Max Depth | 20 Feet |
| Running Time | Up to 12 Hours |
| Compressor | SilentAir Compressor 24V DC |
| CFM | Up to 2 CFM |
| Voltage | 24V (DC) |
| Solar Panel Type | Monocrystalline (60 Cell) |
| Solar Panel Dimensions | 75"L x 41.5"W x 1.57"H |
| Connector Type | MC4 |
| Diffuser Type | (2) ProAir 2 Weighted Diffusers |
| Airline | 5/8" I.D. Self-Weighted |
| Airline Quantity | No Airline or 200' (100' Roll x2) |
| Control Panel | Thermoset Fiberglass (Pole Mount) |
| Cooling Fan |
Yes |
|
1 Mounting Pole Required (Not Included) |
2.5" DIA (2.875" O.D. / 2.47" I.D) x 10'L (min) Schedule 40 Galvanized Steel Pole |
| dB Level |
45-50 @ 5' |
| Warranty | 3 years on Compressor, Electrical Components & Mounting Hardware |
| Diffusers & Airline Warranty |
5 Years |
| Solar Panels Warranty |
Limited 25-Year |
Direct Drive

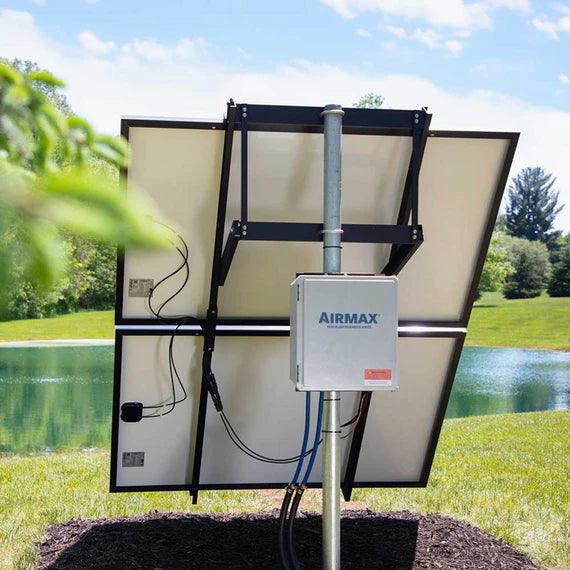

The SolarSeries Direct Drive solar aerator has a 24-volt DC SilentAir compressor housed in a thermoset fiberglass control panel that conveniently attaches to the solar panel mounting assembly. Direct drive systems, which run up to 12 hours per day even in low-light conditions, can prevent winter fish kills in freezing climates and provide supplemental oxygen saturation during the hot months of summer.
American Made Solar Panels

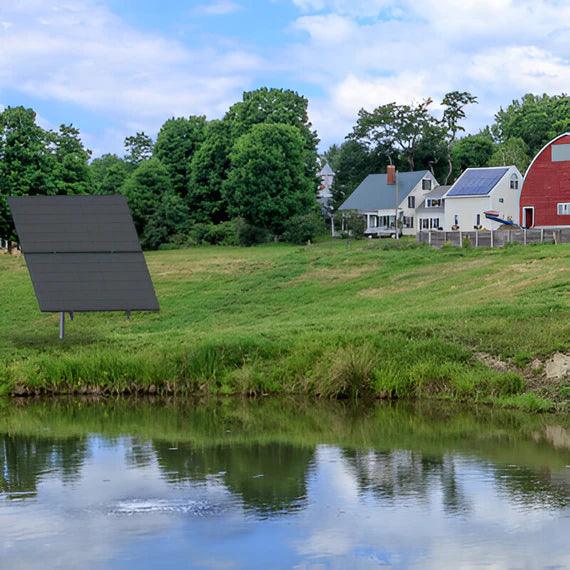

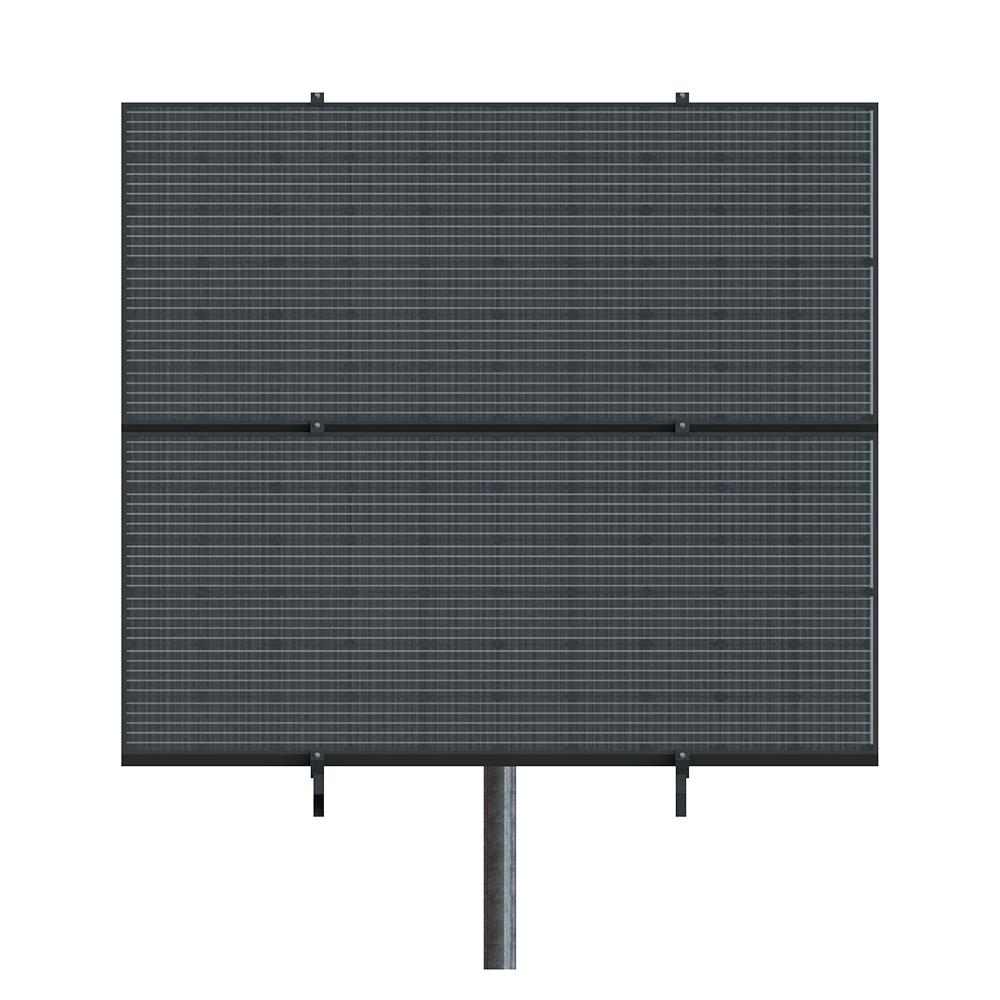

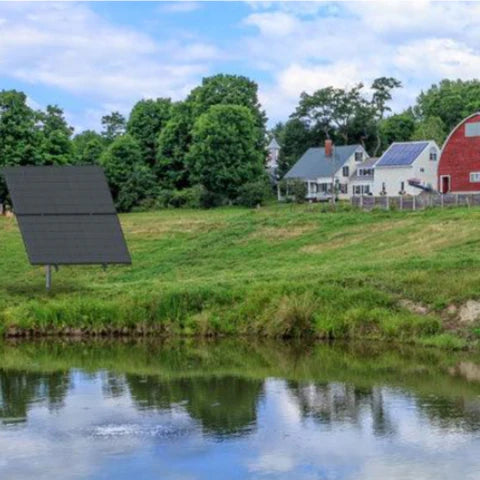

Unlike single-panel systems, the Airmax SolarSeries solar pond aerators come standard with two high-quality American-made solar panels. The panels deliver high output for maximum performance, even in low-light conditions. Solar panels can be installed at the water's edge or up to 1/4 mile away from the pond or lake.
Easy Installation
Our exclusive EasyMount system comes preassembled for simple installation of panels. Made from powder-coated, military-grade aluminum, the EasyMount system is corrosion-resistant, strong, and lightweight.
ProAir 2 Weighted Diffusers
Designed for maximum oxygen uptake, the ProAir 2 Weighted Diffusers incorporate high-efficiency, low-maintenance membrane sticks to release tiny oxygen bubbles into the water column. Membrane diffusers have the synergy of air stones without the headaches of cracking and acid-washing. The ProAir 2 Weighted Diffuser has an integrated check valve to prevent backflow of water in airlines. The innovative sled design keeps the ProAir 2 submerged while maintaining an upright position during installation. Comes with a 5-year warranty.
Airflow Manifold Assembly
Airmax simplifies airflow management to individual diffusers with a 2-port manifold with nickel-plated ball valves, as well as an integrated pressure gauge and pressure relief valve. The SolarSeries SS20-DD solar powered aerator is set up for 5/8" airlines (can be purchased with or without 200' of 5/8" airline). The airline comes with a 5-year warranty.
Airmax SolarSeries Direct Drive Aeration System Manual
