Airmax SolarSeries Fountain Specs |
|
|---|---|
| Recommended Pond Size | Aerates up to 1/2 - 1 Acre |
| Float Diameter | 34 Inches |
| Minimum Operating Depth | 36 Inches |
| Maximum Spray Height | 14 Feet |
| Included Patterns |
|
| Solar Panel Type | Monocrystalline (60 Cell) |
| Solar Panel Dimensions | 68.82"W x 41.5"L x 1.57"H |
| Connector Type | MC4 |
| Motor Type | Water-Cooled Stainless Steel Continuous Duty |
| Motor Lead Length | 24 Inches |
| Available Power Cord Lengths | 100', 150', 200, 250', 300' |
| Available Protective Cord Sleeves | Standard PolyFlex Stainless-Steel Braiding |

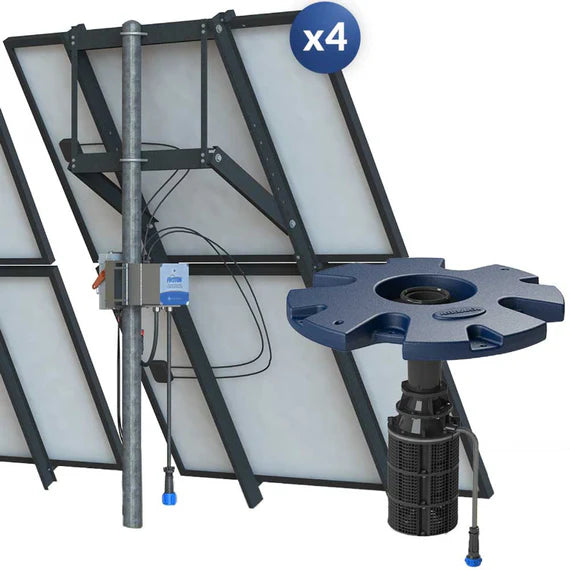

| System Components Included | Power Unit, Float, Power Cord Disconnect Switch w/ Controller (4) Solar Panels and (2) EasyMount Systems |
|
(2) Mounting Poles Required (Not Included) |
2.5" DIA (2.875" O.D. / 2.47" I.D) x 10'L (min) Schedule 40 Galvanized Steel Pole |
|
Compressor, Electrical Components & Mounting Hardware Warranty |
3-Year |
| Solar Panels Warranty | Limited 25-Year |
Airmax SolarSeries solar fountains are designed to be easily installed. No tools are required for assembly or when changing nozzles. The SolarSeries Fountain has a stainless-steel motor lead with an underwater quick disconnect cord for easy motor removal and float removal. See owner's manual for complete solar powered fountain installation instructions.

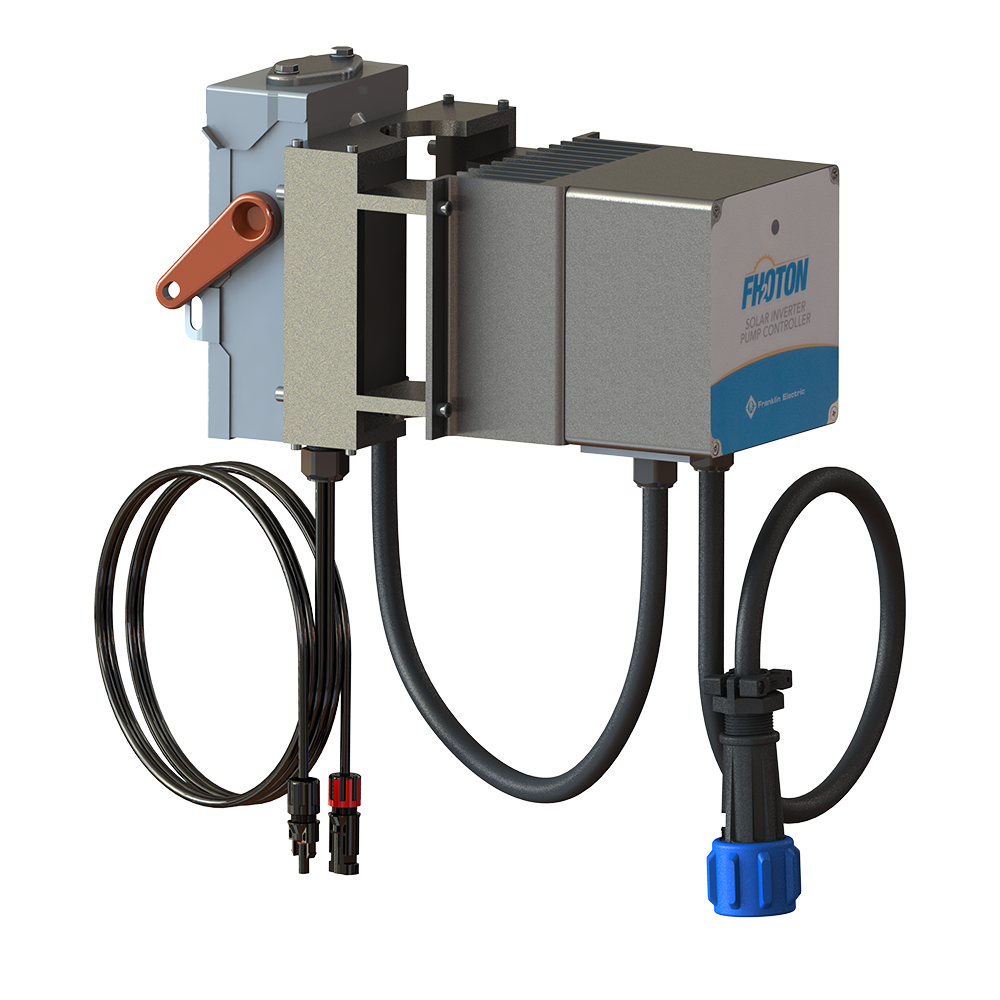

The Airmax direct drive controller monitors the incoming solar power and allows the fountain to operate at variable speeds as the sunlight intensity changes. External shut-off switch for added safety.

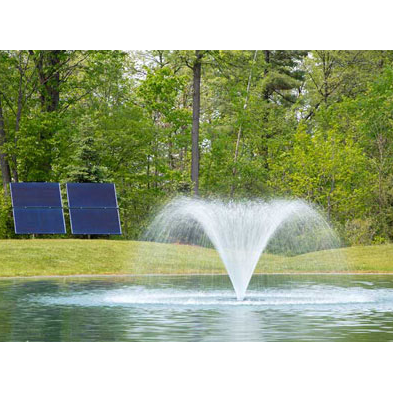

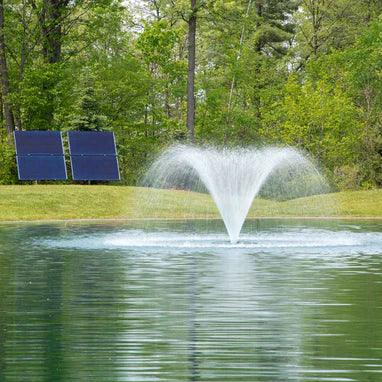

Max Pattern Dimensions:
7.5'H x 18'W
Max Pattern Dimensions:
Crown: 4.5'H x 32'W
Trumpet: 9.5'H x 6'W
Max Pattern Dimensions:
14'H x 5.5'W

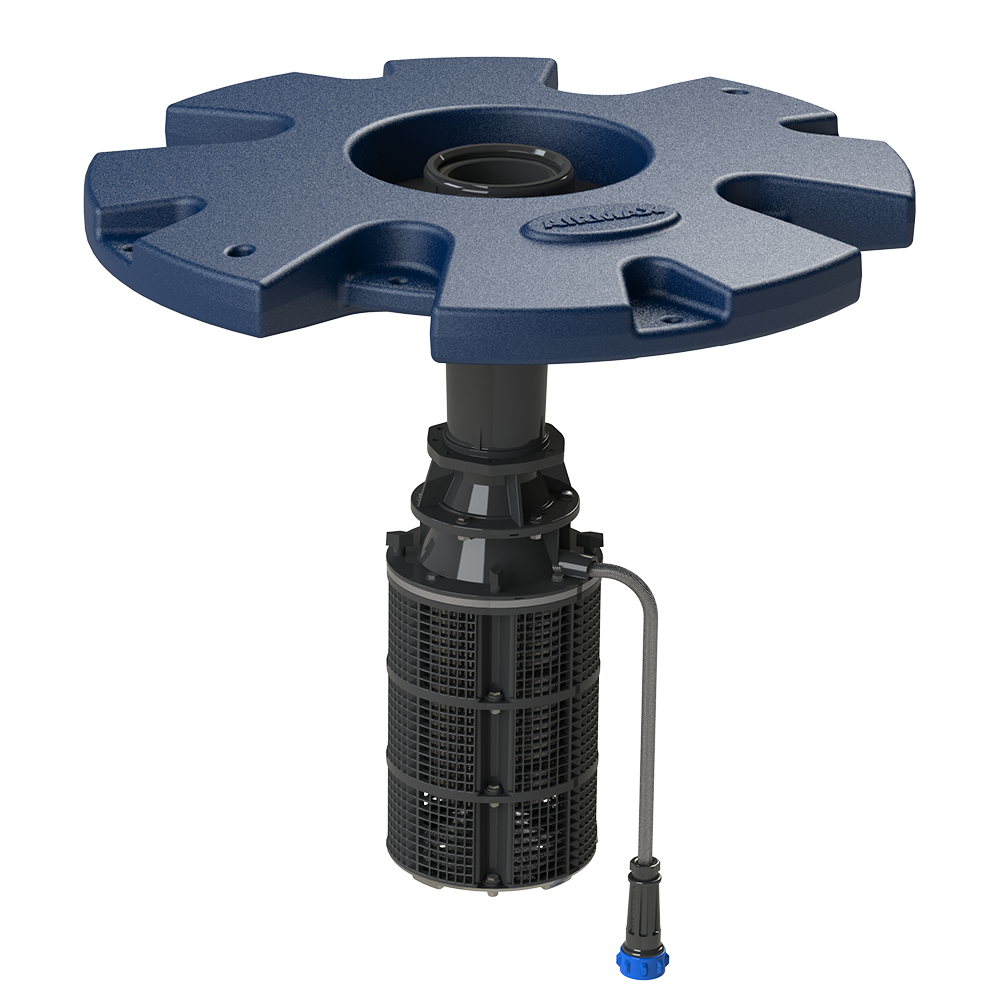

• Fountain Motor With Underwater Quick Disconnect
• 34" Fountain Float
• Power Cord With Strain Relief
• Airmax Fountain Disconnect Switch & Controller Assembly
• SolarSeries Solar Panels (4)

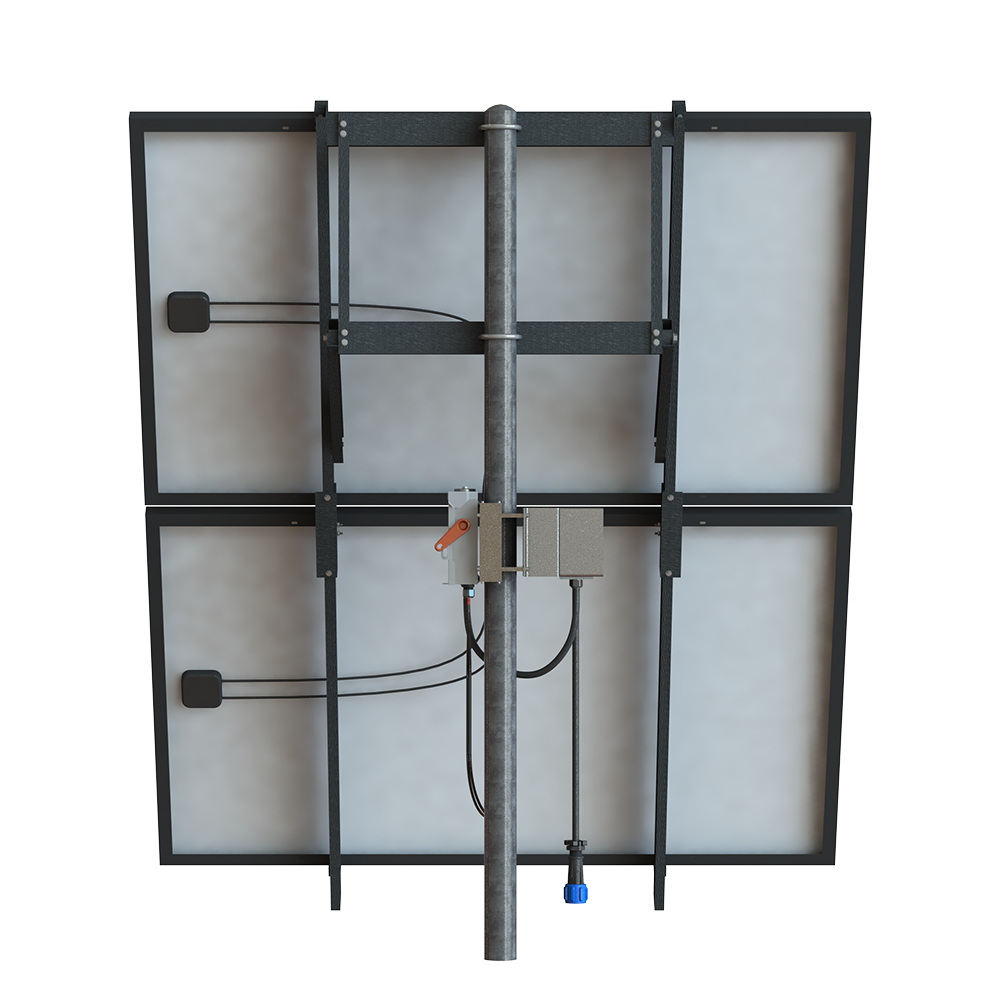

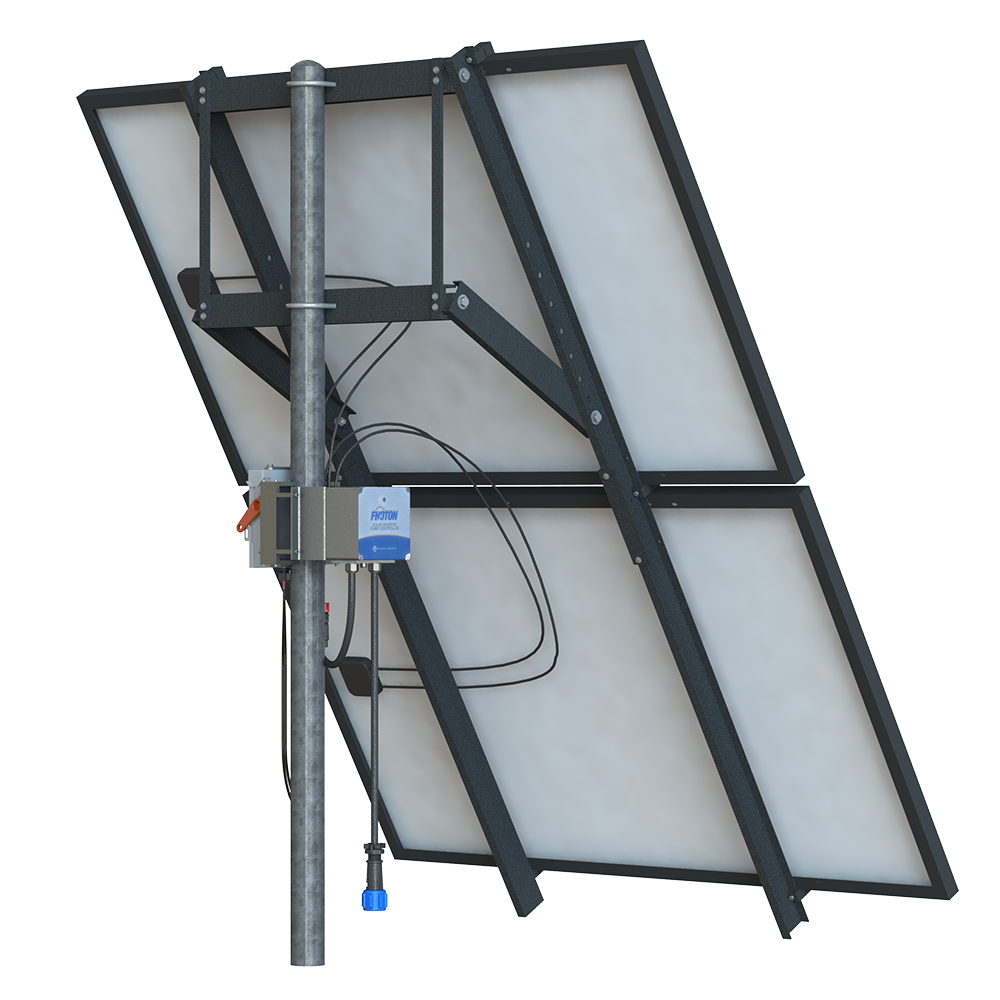

• EasyMount Assembly (2)
• Classic Spray Pattern (already installed - no nozzle required)
• Crown & Trumpet Spray Pattern (interchangeable)
• Trumpet Spray Pattern (interchangeable)
