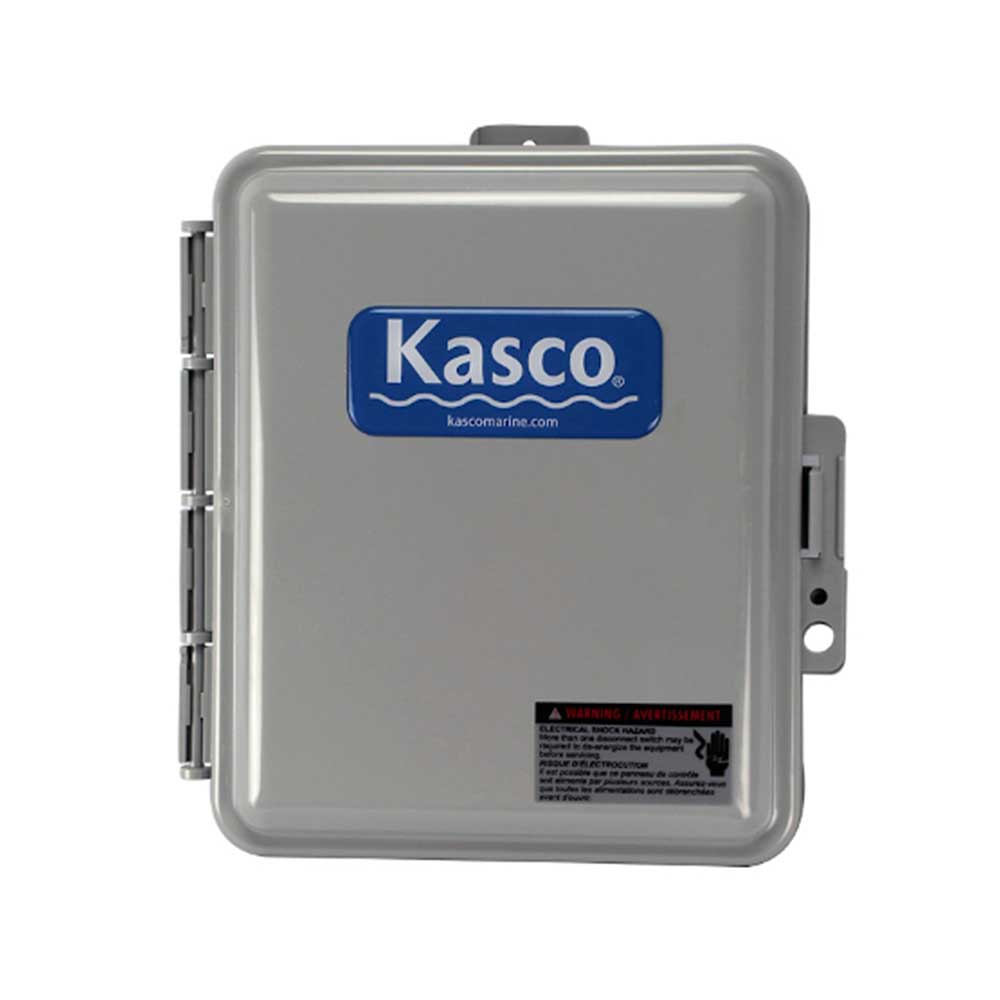

Kasco C-85 230V 20A Control Panel for Fountains and Aerators

Kasco C-85 is Used with 3/4 HP - 2 HP 230V Fountains, Circulators & Surface Aerators

Kasco C-85 Control Panel gives you the performance and safety you need to get the most from your Kasco Fountain, Aerator, or Circulator.  This controller is designed to control ONE pump or fountain.

C-85
A 20 amp control panel featuring GFCI protection, a 24-hour timer for the unit being controlled, and a second 24-hour timer for optional lighting. Surge protection and a terminal block for hardwiring the equipment are included, all in a thermoplastic NEMA 3r/4x enclosure. The C-85 Control Panel requires a hard-wire connection to four leads (L1, L2, a neutral, and ground) and must be installed by a qualified electrician.

• 208-240V
• Single Phase
• 20 Amp Class A Human Rated GFCB
• Built-In Surge Protector
• 24 Hour Mechanical Timer for Unit
• 24 Hour Mechanical Timer for Optional Lights
• Terminal Block for Hardwiring
• Requires 4 Wire Power (L1, L2, Ground, and Neutral)
• Thermoplastic NEMA 3r/4x Enclosure
• Door Mounted Wiring Schematic
• Lockable Enclosure
• No one should be in the water while equipment is operating or plugged in. The GFCI protected circuit should always be used.

It is essential to test any GFCI monthly to ensure proper operation. Check the instruction manual for the procedure.
